Application
It has a wide range of applications.such as large festivals,large exhibitions,large sports events and temporary activities,site planning,road construction and so on.
Feature
Good removability, strong stability, beautiful appearence, free standing.
Packaging
With plastic film inside,metal pallet outside.standard export packaging.we can also do as your requirements.
Technical Specifications:
Wire Diameter | 3.0mm, 3.5mm(popular), 4.0mm |
Mesh Open | 50*100mm(2”x4”) 75*150mm(3”*6”) |
Height | 6ft, 8ft or Customized |
Width | 9.5ft, 10ft or Customized |
Panel Size | 2.1*2.4m; 1.8*2.4m or customized |
Frame | 25*25mm, 30*30mm |
Frame thickness | 1mm-2mm |
Surface finishing | Hot-dipped galvanized after welding Pre-hot dipped galvanized+powder coated |

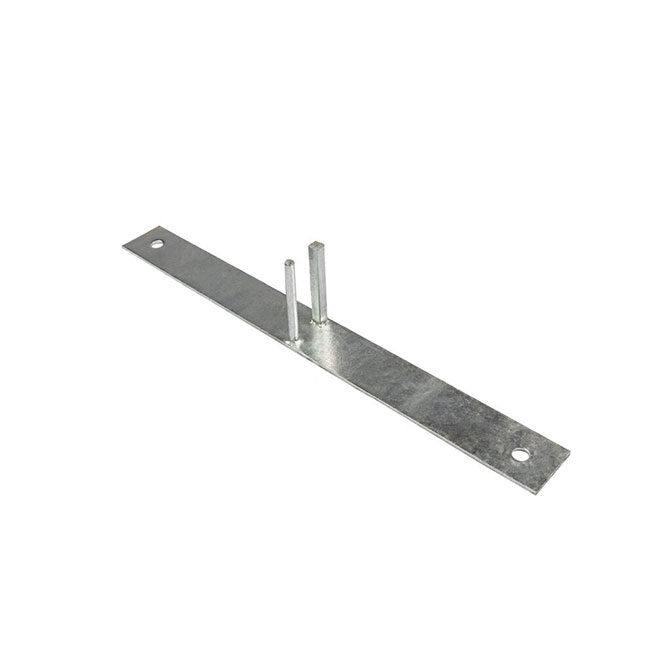

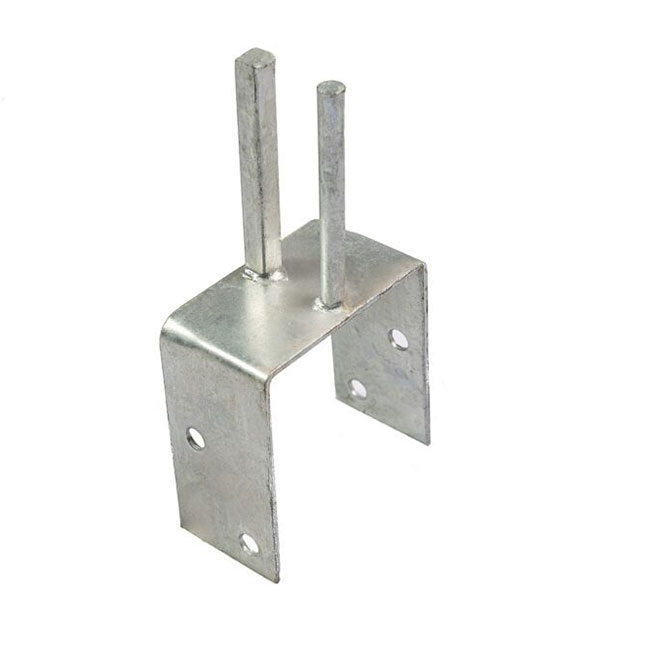

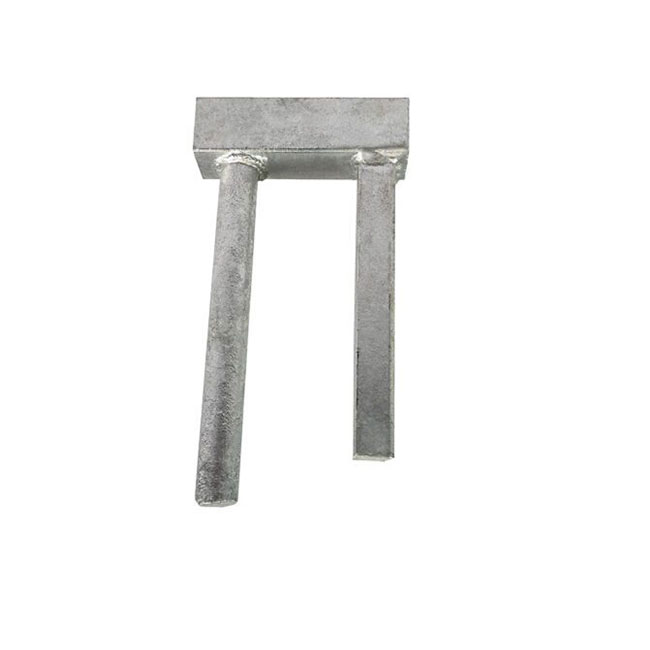

Feet | 750*100*5mm 563*89*7mm 863*89*8mm |

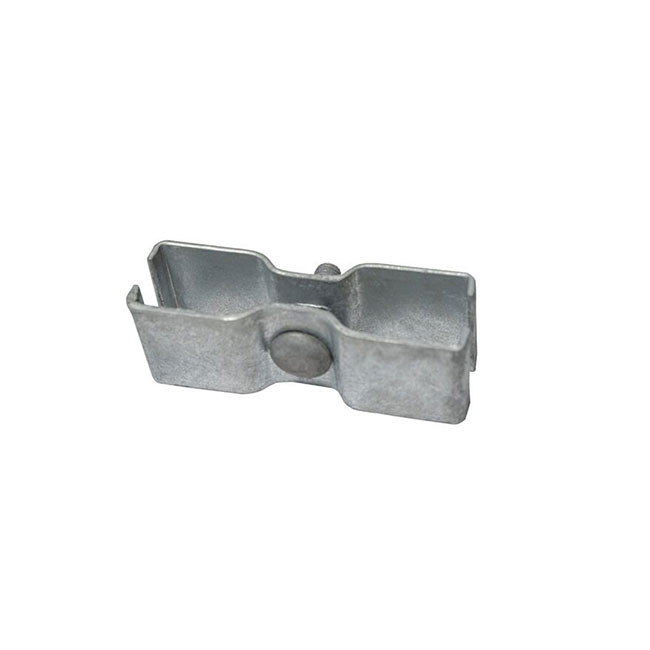

Other fittings | Clamps and supports available |
